I just have the pictures of the assembly process at this time. Detailed instructions will be coming soon. |
|

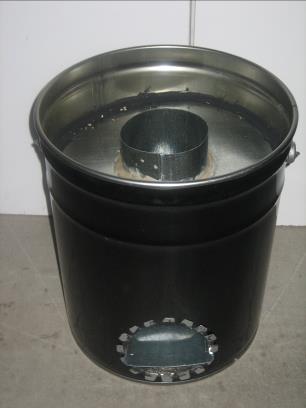

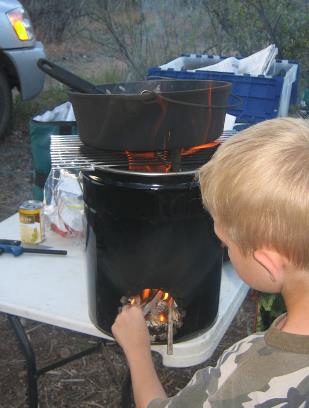

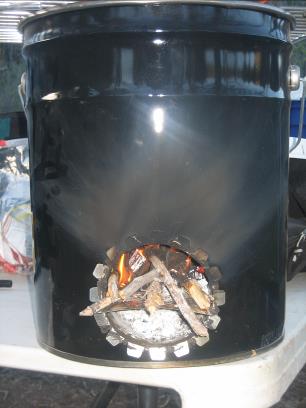

Rocket Stove (In a 5 Gallon Bucket) |
|
Rocket Stove Materials Aprox. Price Per Stove 5 Gal. Metal Bucket $ 5.20 Plastic 5 Gal. Lid $ 0.75 Interior Cap $ 2.20 (4” Center Hole Diameter about 12” External Diameter) Punched at Sheet Metal-ist 90° Elbow $ 2.50 4"dia X 5"Long Pipe $ 1.75 4" Start Collar $ 1.50 24 qt Vermiculite $ 6.50 Hi Temp Caulking $ 0.50 Piece of metal for air intake $ 0.75 |
|

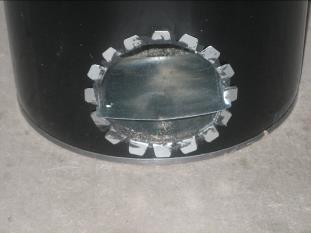

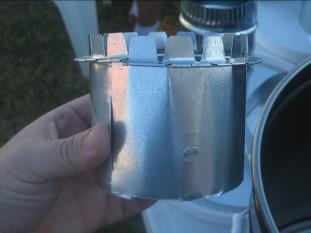

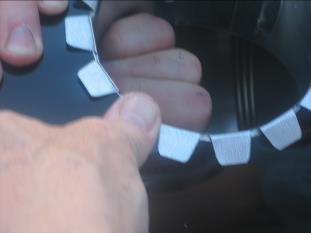

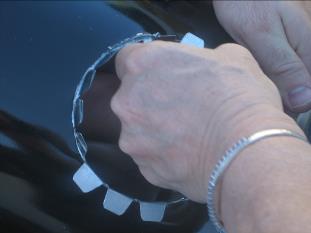

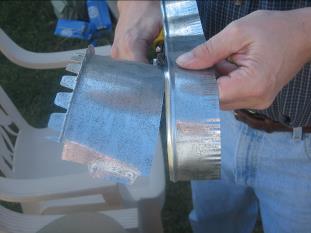

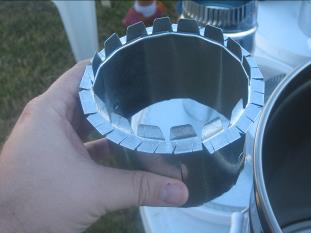

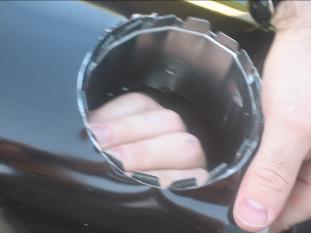

4" start collar |
|
4" start collar |
|
4" start collar |
|
4" start collar |
|

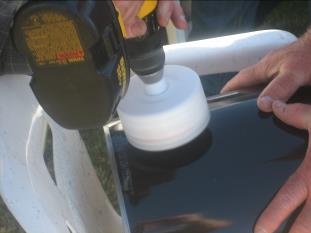

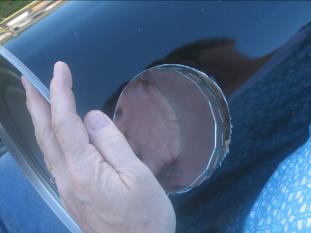

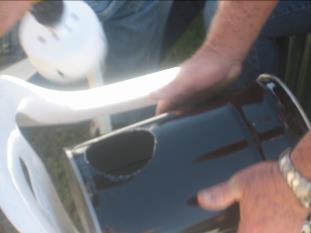

5 Gallon Bucket & 4" Hole Saw |
|
4" start collar |
|
4" start collar |
|
4" start collar |
|
4" start collar |
|

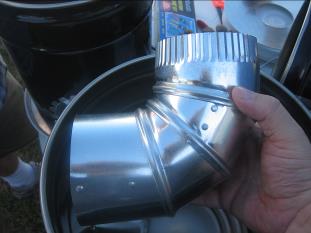

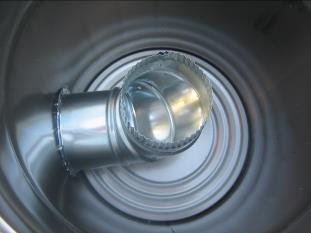

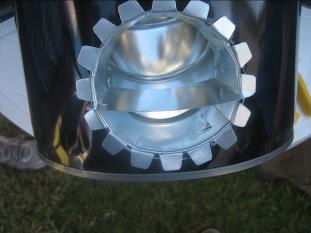

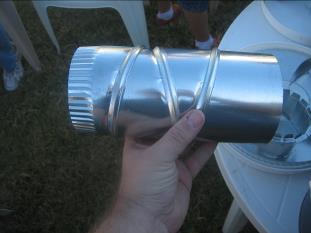

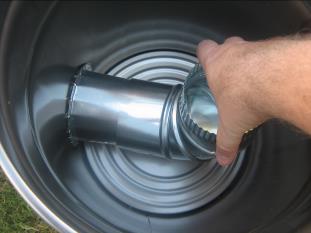

90° elbow |
|
90° elbow |
|
90° elbow |
|
90° elbow |
|

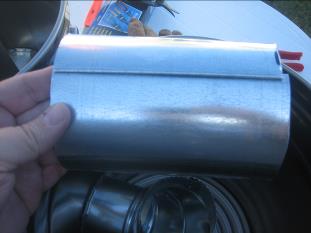

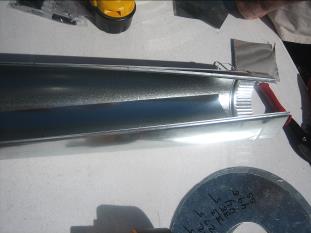

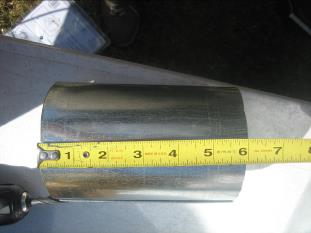

4” Stove Pipe |
|
4” Stove Pipe |
|
4” Stove Pipe |
|
4” Stove Pipe |
|

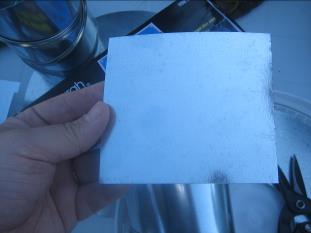

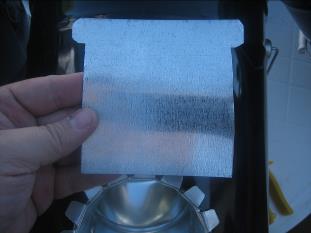

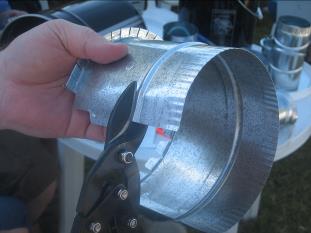

Piece of metal for air intake |
|
Piece of metal for air intake |
|
Piece of metal for air intake |
|

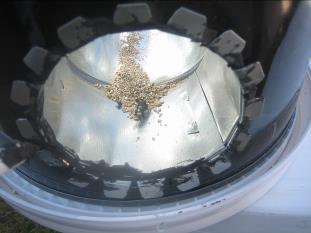

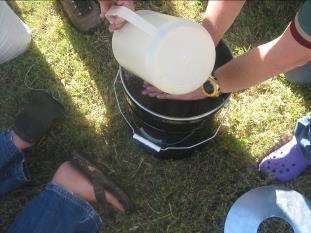

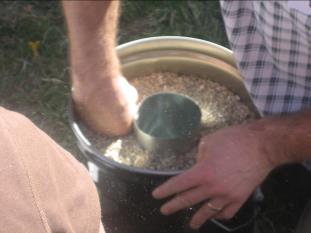

Vermiculite |
|
Vermiculite |
|

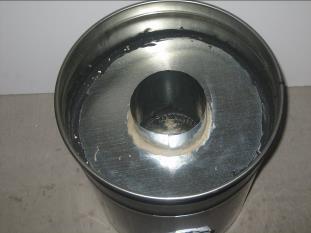

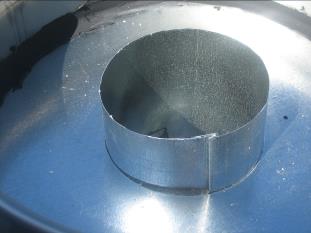

Interior Cap |
|

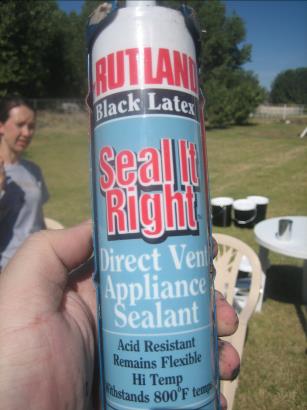

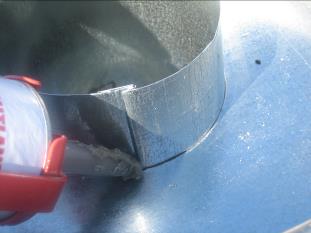

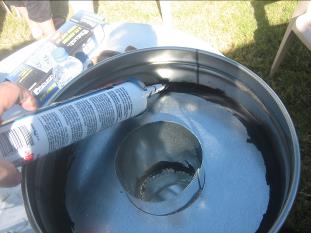

Hi Temp Caulking |
|
5 Gallon Bucket, Lid and Vermiculite purchased at www.sunwestcontainer.com Interior Cap purchased at local Sheet metal shop, they were able to punch 150+ donuts for our large build. Elbow, pipe, collar, Caulking and piece of metal were purchased at Ace Hardware. |
